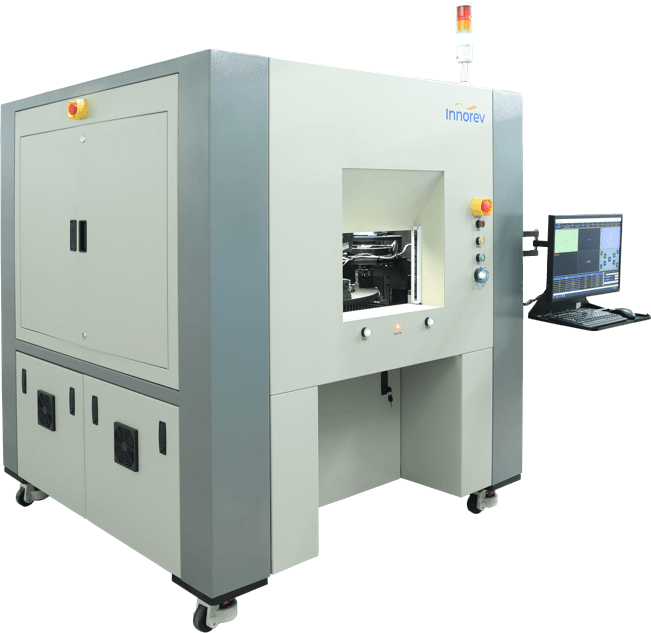

Camera Focus and Bonding Machine

Application: FFCamera module focusing, bonding and curing all-in-one machine

Model

FCM-TC01

For more information

Functions

Camera focusing, bonding, curing, and image capture testing.

Automatic focus tuning.

Contamination, dust, optical center testing, etc.

Bonding & UV curing.

Image resolution (MTF) retest.

Core Modules

High reliability socket design.

Custom designed charts and light source.

Focus tuning module(Up to 150°FOV, force control) High uniformity blemish panel.

Bonding and curing module(365nm fast UV curing).
