首页 >> Solutions >> Other Solutions >> IVD Platform >> POCT Fill

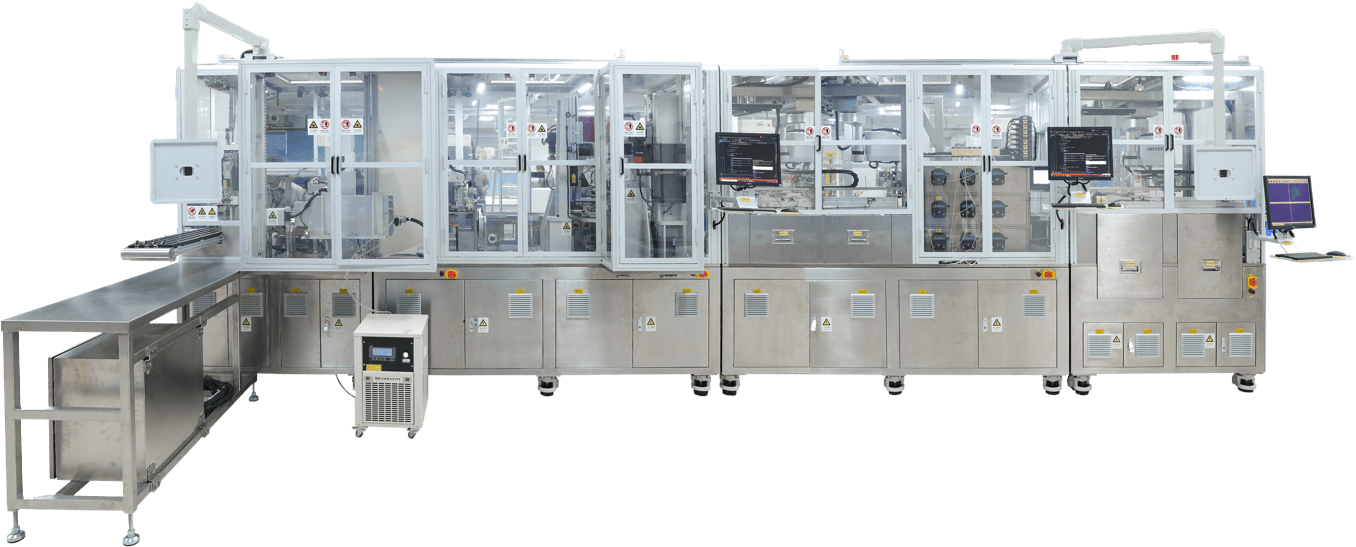

Chilled reagent filling

This production line is suitable for the filling and sealing of refrigerated reagent strips to avoid light

UPM

16pcs/min
Yield

≥99.5%

For more information

Process

ST01: Reagent Strip Loading → ST02: Filling → ST03: Reagent Strip Cap → ST04: Laser Welding → ST05: Paste RFID Chip → ST06: Vehicle Unloading → ST07: RF Information Reading Detection → ST08: Laser Marking → ST09: Finished Product Blanking Packaging

Features

UPM	16pcs/min
Product	Chilled Reagent Strips
Transfer	Carrier + Linear Guide
Filling	Peristaltic pump + Filling Needle
Yield	≥99.5%
OEE	≥75%
Control	HMI + PLC
